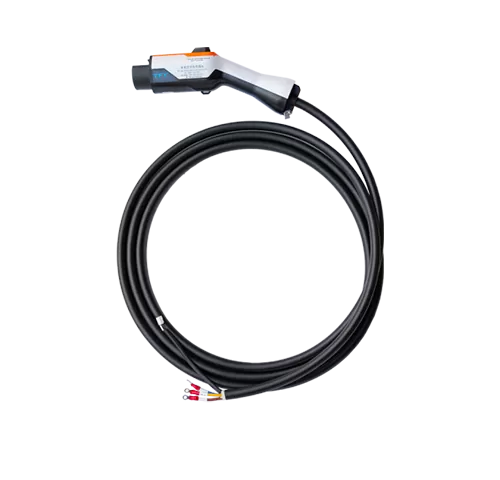

Ningbo Taifengyuan Electric Intelligent AC Charging Gun, Model TFY-GB-1AC32-MB-015-B-A33-L5-01. Equipped with a built-in metering module to replace the metering module inside charging piles, it features a rated voltage of 250V and a rated current of 32A, meeting Class B metering accuracy. Adopting a detachable gun head design, it facilitates the replacement of faulty charging guns. It supports RS485/4G communication and positioning functions, and the separated structure of gun and pile enables convenient verification and maintenance. With a plug-in service life of ten thousand times, it is safe and durable, and applicable to various AC charging pile scenarios.
Port Definition | L/N | PE | CC | CP | |
Wiring Specification (Unit: mm²) | 6 | 6 | 6 | 0.5 | 0.5 |
Contact Terminal Diameter (Unit: mm) | Φ6 | Φ6 | Φ3 | Φ3 | |
Rated Operating Voltage (AC) | 250V | / | 0~30V | 0~30V | |
Rated Operating Current (AC) | 32A | / | 2A | 2A | |
Insulation Resistance | >500MΩ (500VDC) between LI/N/PE/CP | ||||
Withstand Voltage (Leakage Current: ≤5mA) | Between L and N: >2500V AC for 1 minute; Between L/N and PE respectively: >2500V AC for 1 minute; Between L/N and CP respectively: >1500V AC for 1 minute. | ||||
