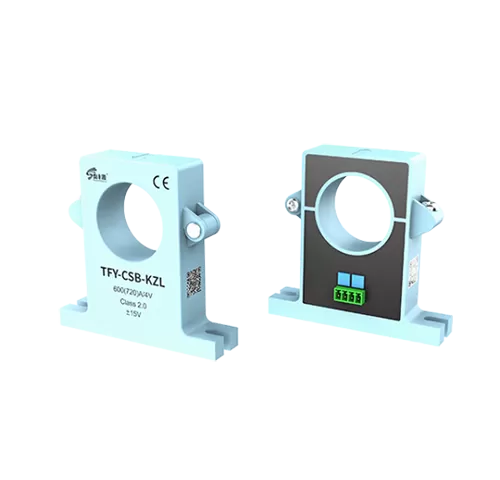

This product is the TFY-CSB-KZL200 current sensor manufactured by Ningbo Taifengyuan Electric. It is a high-precision current measurement module designed based on the tunnel magnetoresistance and closed-loop operating principles, capable of measuring currents of various waveforms such as alternating current, direct current and pulse current. It has a rated input of ±200A and a maximum measuring range of ±240A. Featuring high accuracy grade and fast response speed, it boasts a zero-point temperature drift of less than 0.1mV/℃ and can operate stably within the temperature range from -40℃ to 85℃, making it suitable for industrial high-precision current measurement scenarios.
Definition | Symbol | Value | Unit |
Primary Rated Current | Ipn | 100, 200, 300, 400, 500, 600 | A |
Secondary Rated Voltage | Vsn | 4 | V |
Maximum Primary Current | Ip | 1.21 | A |
Secondary Output Voltage | Vo | 4.0 × (1/Ip) | V |
Load Resistance | RL | ≥10 | kΩ |
Supply Voltage | Ve | ±12V (±5%) | V |
Quiescent Current Consumption (@±12V, I=0A) | Ic | ≤5 | mA |
Maximum Current Consumption (@±12V, I=Ip) | m | ≤94 | mA |
Total Accuracy (@25°C) | XG | ≤1 FS | % |
Linearity (@25°C) | EL | ≤0.5 FS | % |
Zero Offset Voltage (I=0A, @25°C) | VoE | ≤±1 | mV |
Zero Temperature Drift (I=0A, @-40~85°C) | Vor | <0.1 | mV/C |
Hysteresis Offset Voltage (@I=0A, after 1×IPN) | VoH | ≤±1 | mV |
Response Time (@90% Ipn) | Tra | ≤5 | μs |
Bandwidth (@10% Ipn, -3dB) | BW | DC~20 | kHZ |
