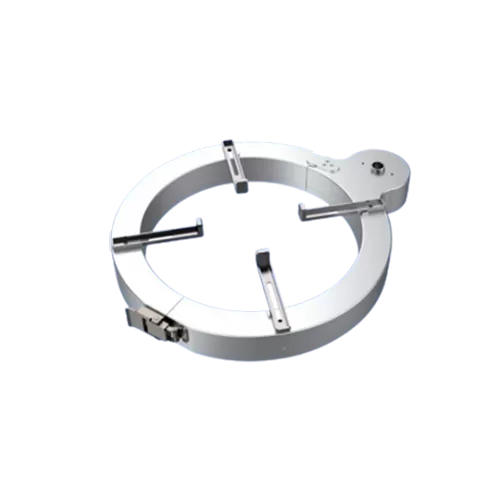

The rigid Rogowski coil for traveling wave ranging is model TFY-ROG-1000 manufactured by Ningbo Taifengyuan Electric, which is specially designed for power traveling wave fault location scenarios. Adopting a split rigid structure, this product features easy installation. It covers a frequency range from 10Hz to 100kHz (expandable up to 100MHz) with a linearity of ±0.5% and an accuracy of ±1%. It can accurately capture transient current signals and operate stably in environments ranging from -25℃ to 70℃, providing reliable data support for the rapid location of power grid faults.
Definition | Value 1 | Value 2 |
Input/Output (AC) | 95mV@1000A@50Hz | 4mV@1000A@50Hz, 500Load |
Accuracy | ±1% | ±5% |
Frequency Range | 10Hz~100kHz | 50Hz~100MHz |
Linearity | ±0.5% | |
Temperature Coefficient | ±0.08%/°C of Maximum Reading | |
Operating Temperature | -25°C ~ +70°C | |
Storage Temperature | -40°C ~ +80°C | |
Position Sensitivity | ±5% | |
